Custom Carbon Fiber Sheet
Place of Origin: Guangdong, China
Brand Name: CarbonXcel
Material: Carbon Fiber+Epoxy Resin
Appearance: 3K/UD/Colored/Forged/Jacquard Pattern
Surface Treatment: Glossy/ Matte
Applications: Industrial Parts, Drone Parts
Feature: Light Weight/High Strength
Technology: Laminating in Autoclave Machine
--------------------------------------------------------------------------------
Hot Products：
Product Specifications:
Product Name | Custom Prepreg Carbon Fiber Sheet |
|---|---|
Fiber Type | 1K, 1.5K, 3K, 6K, 12K hybrid with Aramid & Fiberglass |
Fiber Model | T300, T700, T800, M40, M55, M60 |
Pattern | Plain/Twill, Colored electroplate fabric, Glitter, Kevlar hybrid, 5D pattern, Satin pattern |
Surface Treatment | Glossy, High glossy, Matte, 50% Matte |
Dimension | Maximum Length-1500mm | Maximum Width -1500mm |
Thickness | 0.2mm~50mm customized |
Production Facility | Autoclave Machine |

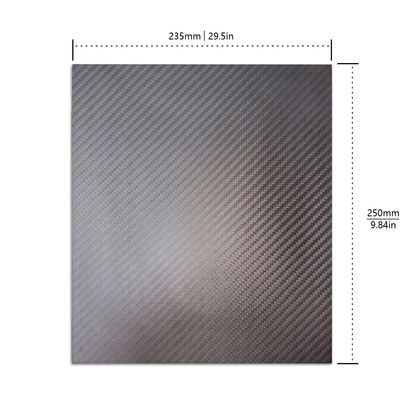

Carbon fiber sheet
----------------------------------------------------------------------------------------------
Carbon Fiber Drone Frame Kit
Regular size and thickness of carbon fiber sheets:
----------------------------------------------------------------------------------------------
Carbon fiber sports equipment
Size | Size | Size | Size |
|---|---|---|---|
200mmx200mm | 200mmx300mm | 200mmx500mm | 200mmx600mm |
300mmx300mm | 300mmx400mm | 300mmx500mm | 300mmx600mm |
400mmx500mm | 450mmx500mm | 500mmx500mm | 500mmx600mm |
500mmx700mm | 500mmx800mm | 1000mmx1000mm | 1000mmx1200mm |
100mmx100mm | 100mmx200mm | 100mmx300mm | 100mmx400mm |
Thickness | Thickness | Thickness | Thickness | Thickness | Thickness |
|---|---|---|---|---|---|
0.2mm | 0.4mm | 0.5mm | 0.7mm | 0.8mm | |
1mm | 1.2mm | 1.4mm | 1.5mm | 1.6mm | 1.8mm |
2mm | 2.2mm | 2.4mm | 2.5mm | 2.6mm | 2.8mm |
3mm | 3.2mm | 3.4mm | 3.5mm | 3.6mm | 3.8mm |
4mm | 4.5mm | ||||
5mm | 5.5mm | ||||
6mm | 8mm | 9mm | 10mm | 11mm | 12mm |
13mm | 14mm | 15mm | 16mm | 18mm | 20mm |
25mm | 30mm |

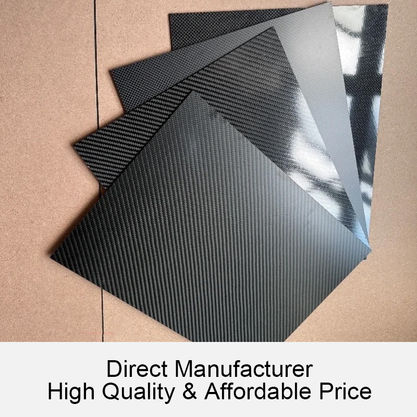

Carbon Fiber Sheets by CarbonXcel
CarbonXcel offers premium carbon fiber sheets as an excellent alternative to traditional steel and aluminum plates. These sheets provide exceptional properties such as high tensile strength, corrosion resistance, shock resistance, and impact resistance, all while delivering the superior strength and elasticity of carbon fiber.
Key Features:
-
High Strength and Stiffness with Lightweight Design
-
Outstanding Fatigue Resistance
-
Dimensional Stability: Low to Zero Coefficient of Thermal Expansion (CTE)
-
X-Ray Transparency
Why Choose CarbonXcel?
CarbonXcel specializes in producing top-quality carbon fiber sheets and angles, alongside comprehensive CNC machining services, since 2014. Our engineering team works closely with clients to tailor the layup methods of carbon fiber plates to meet specific physical property requirements. We offer various lamination orientations, including 0°, +45°, and 90°, with each direction serving a specific purpose:
-
0° Laminating for normal stress
-
+45° Laminating for shear stress
-
90° Laminating to ensure radial direction for compressive loads
Our Advantages:
-
We own 15 autoclave facilities, enabling us to deliver cost-effective carbon fiber sheets, as well as fiberglass and hybrid aramid options, in different colors and patterns.
-
Custom CNC machining for large, thick fiber sheets with precise processing.
-
Flexible ordering options: Small MOQ for trial orders, discounts for bulk purchases, and exclusive deals for wholesalers.
-
Competitive shipping rates, with DDP/DDU service available by sea, air, or truck, plus VIP express discounts via FedEx/TNT/DHL.
Trust CarbonXcel for your next carbon fiber project, and experience the best in quality and service!
